Single phase by Undercurrent – PS-R

Single phase by Undercurrent – PS-R

Without requiring any external detectors like level electrodes, it monitors the load of the motor and stops it before an expensive breakdorwn occurs.

  • Without requiring level sensor to detect dry running.
  • For single phase motors from 3 to 16 A and over. Cable feed through.
  • Precise motor heating and cooling memory, reproduces its thermal image.
  • Visual indication of tripping cause.
  • Adjustable reset time for I<.
 Model Motor

Code

Range IB (A)

Motor

V aux.115V V aux.230V

CV

kW

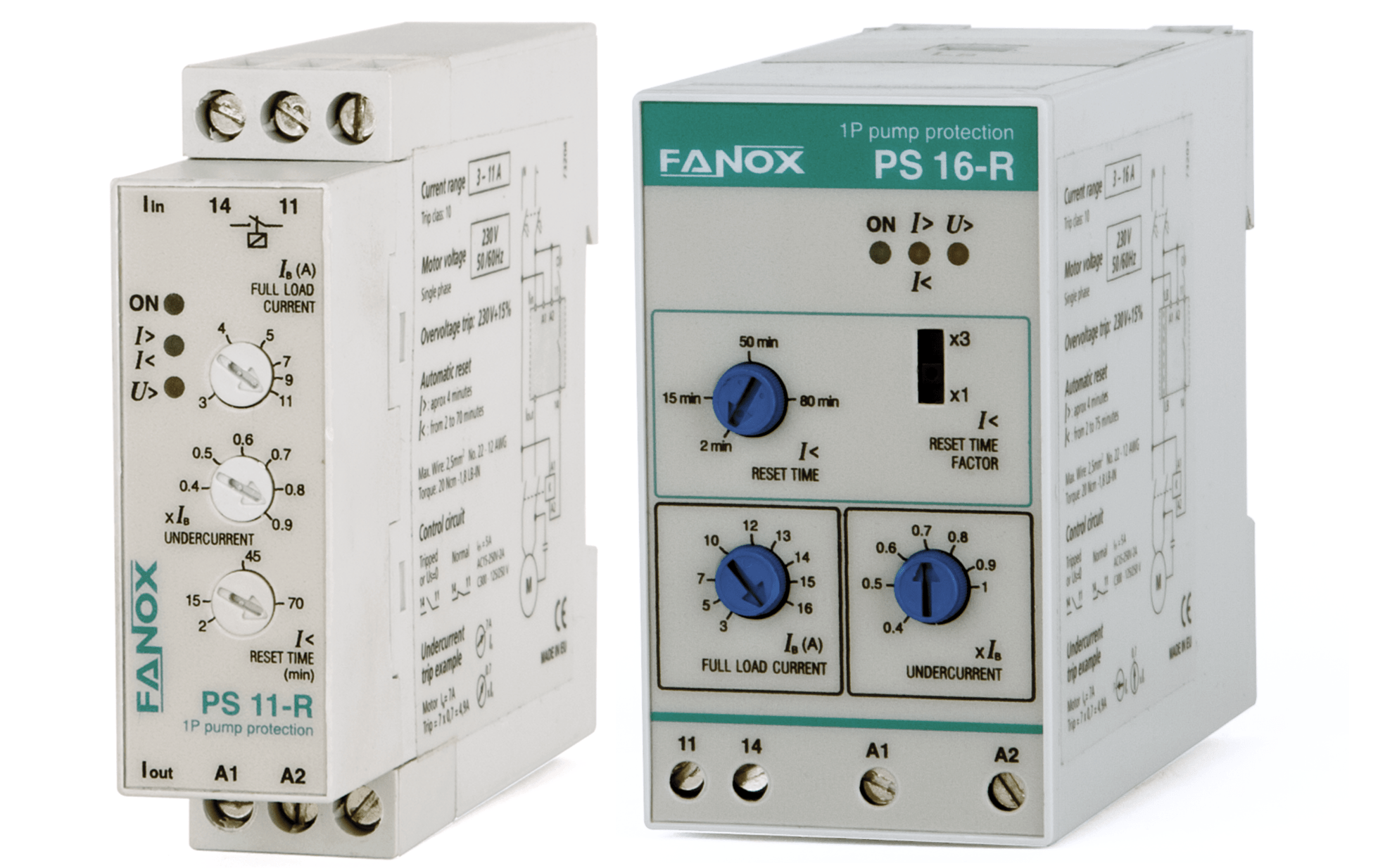

PS11-R Single Phase 12171 3 – 11 (1×230 V) 0,5 – 2 (1×230 V) 0,37 – 1,5
12164 3 – 11 (1×230 V) 0,5 – 2 (1×230 V) 0,37 – 1,5
PS16-R 12172 3 – 16

3

2,2

12163 3 – 16

0,5-3

0,37-2,2



Some of the most common applications in domestic, industrial and agricultural installations are as follow:

  • Submersible pumps: water supply, irrigation, well dewatering, petrol stations…
  • Surface pumps: sewage treatment plants, swimming pools, pressure sets, fire-fighting equipment…
  • Other typical applications that require monitoring: belt drives, ventilators, conveyor belts…

PROTECTION FUNCTIONS:

  • Overload
  • Undercurrent
  • Overvoltage

Specifications
