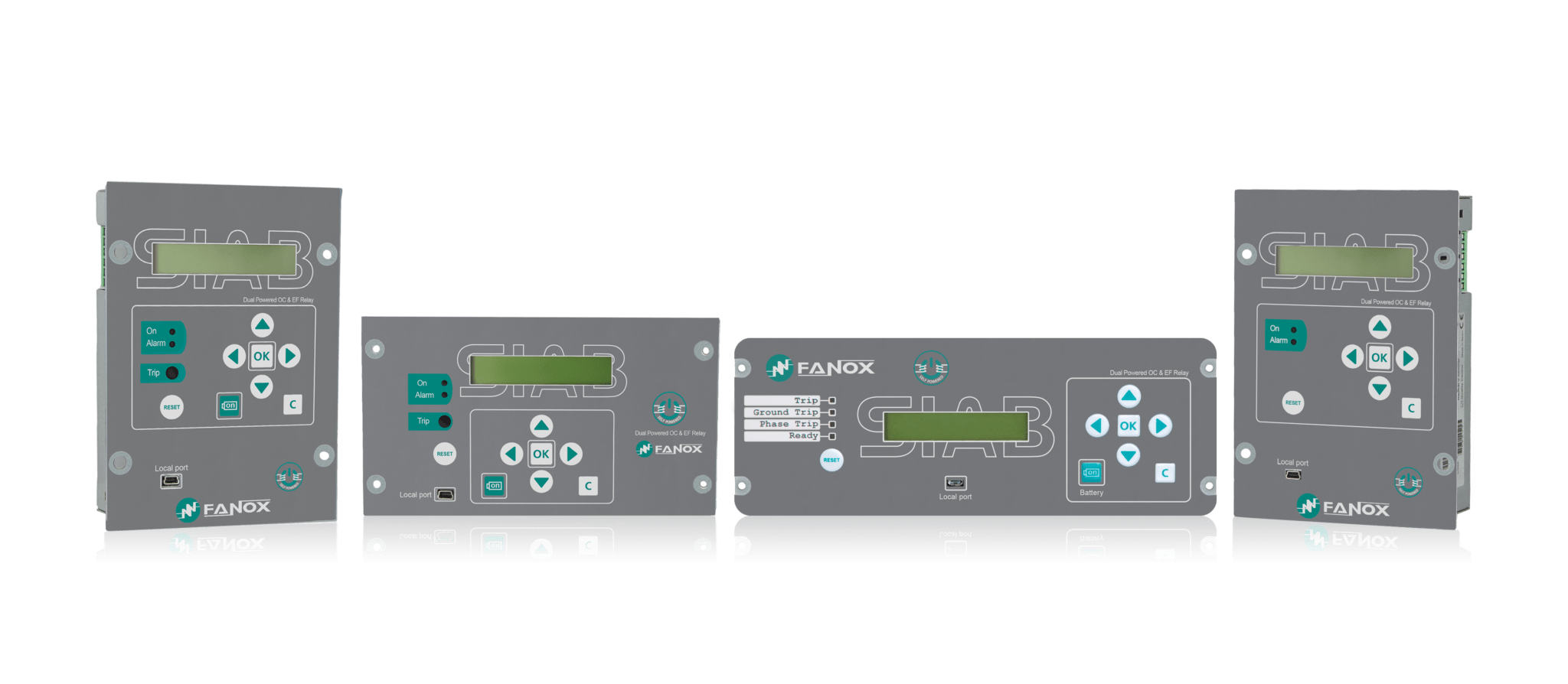

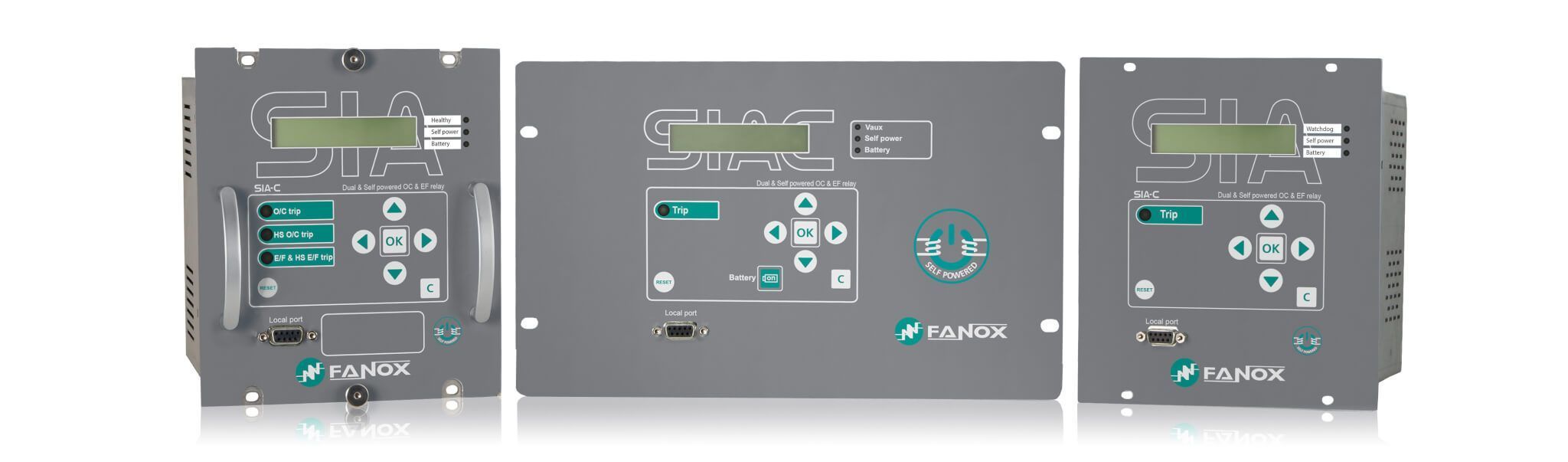

SIA-B & SIA-C FAMILIES

SIA-C SIA-B STANDARD CTs SIA-B Specific CTs
Standard CTs /1 or /5 Standard CTs /1 Specific CTs

Local COM-RS232 (Modbus RTU)

Remote COM-RS485 (Modbus RTU or IEC60870-5-103)

Local COM-USB (Modbus RTU)

Remote COM-RS485 (Modbus RTU or DNP3)

Local COM-USB(Modbus RTU)

Remote COM-RS485 (Modbus RTU)

Self-powered + Optional auxiliary supply (24 Vdc, 48 Vdc 100-230 Vac/dc or 230 Vac) Self-powered + Optional universal auxiliary supply (24-230 vac/dc) Self-powered + Optional auxiliary supply (24 Vdc, 110Vac or 230 Vac)

Self powering level: 0.1xIn

(3-phase)

Self powering level: 0.075xIn (3-phase)

Self powering level: 0.4xIn

(3-phase)

50/51/50G/51G

Optional: 46/46BC/CLP/50BF/50_2/50G_2/49/79/52/SHB

50/51/50G/51G/SHB/49/52

Optional: 46/CLP/50BF/50_2/50G_2/trip block

50/51/50N/51N

Optional: 49/Trip block

Optionally, Configurable I/O Configurable inputs & outputs Optionally, Configurable outputs

SIA-B & SIA-C PRINCIPAL APPLICATIONS

In Renewable energies, the relays are very compact so they are very useful because the switchgear in this application is really small.

In photovoltaic installations the idea of Fanox solutions is the Standard SIA-B. Why? Because in this market it is really important to use a really competitive and easy relay.

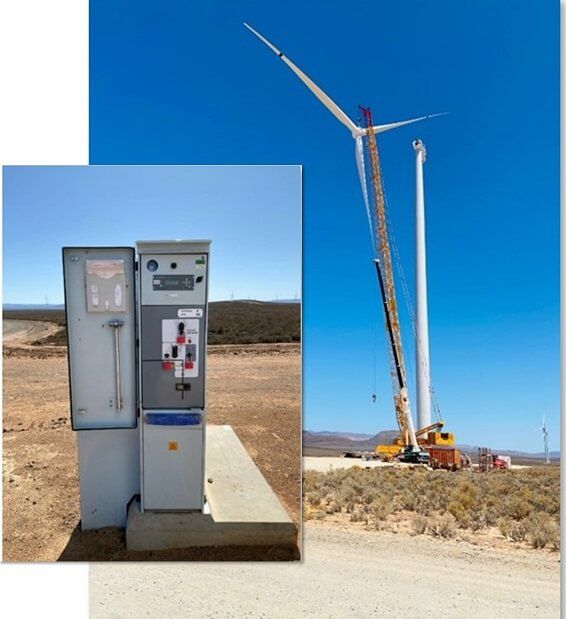

In the case of wind-powered we usually use the Standard SIA-B. We can find this relay in two applications, it can work as a mind protection of the installation or it can work as a backup protection. If the mind protection loses the power supplier we will have the self-powered relay to protect again short circuit and earth fault.
